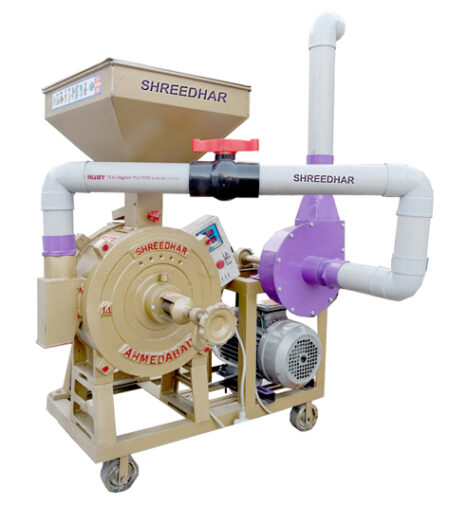

Dal & Rava Making Machine

Efficient Grinding Technology for all type of grains and Dry Masala Special blower Design for Rava& Dal Operated on domestic power supply More Efficient and well balance Grinding Emery stone gives long life Blower gives separation of dal &Chilka Single Motor for Both Operation

Keeping track with the latest market development we are actively engaged in offering supreme quality Dal&Rava Making Machine (Attachakki)

We have been capable to offer the broad range of Flour Mill. Offered flour mill is designed using by making use of high proven wires, motors, etc, coupling with the modern technology. This flour mill is highly demanded in the market, owing to its superb features. Offered flour mill is available in a wide number of models

Product Specification

Model No.
Grinding Wheel Diameter
14 Inch
Grinding Wheel Thickness
75 mm
Electric Motor Capacity (Single Phase)
3 HP 1440 RPM
Power Consumption per Hour
3.0 Unit
V- Belt Size
Shaft Diameter (EN-8)
35 mm
Ball Bearing
6207 (2 pcs.)
Grinding Capacity Per Hour (On 230 valt )
60 to 75 Kgs
Full Set Weight
180 Kg


Heavy Body Construction.

The coarse or fine flour& Dal adjustment is very simple.

Easy to move by having Trolley system.

Flour Mill is well guarded by protective cover on V-Belt to avoid accidents.

Power Saver Electric motor Is safe by Auto Tripping Switch with Penal Board.

Flour mill is mechanically well balanced, so it reduces the Noise factor and power Consumption.

Flour Mill can be used on electric Supply Single phase / Three Phase

Two Bearing Grinding Technology for all types of Grains.

Long Life Uses And Lowest Maintenance.

Standard Vacuum Type Blower High Efficiency.

Standard Copper winding Motor & Grade Silicon Stamping.
